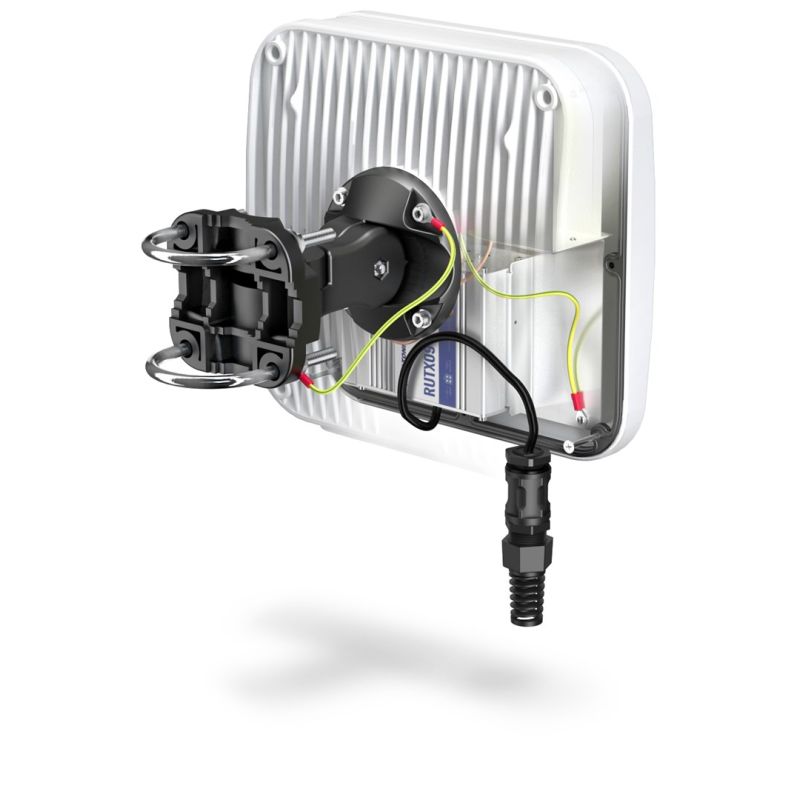

QuWireless QuMax Antenna – directional PoE/LAN antenna, 6 dBi

Apraksts

Features Mounting type: Wall/Pole Antenna connector type: PoE/LAN Housing material Acrylonitrile butadiene styrene copolymer (ABS) Aluminium Product colour: White Voltage standing wave ratio (VSRW): 1.8 Antenna type: Directional antenna Polarisation: Vertical polarisation Intended use: Indoor / outdoor IP protection rating: IP67 Weight and dimensions Product depth: 96 mm Product height: 276 mm Product weight: 1.8 kg Product width: 272 mm Operating conditions Operating temperature range: -40–75 °C Performance Frequency band: 0.694-0.96/1.7-2.2/2.2-2.7 GHz Gain factor: 4 / 6 dBi Horizontal beamwidth: 90° Maximum antenna gain level: 6 dBi Vertical beamwidth: 90° Impedance: 50 Ω Packaging content User manual: Yes Quantity: 1 piece Mounting kit: Yes Logistics data Country of origin: Poland

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1.8
