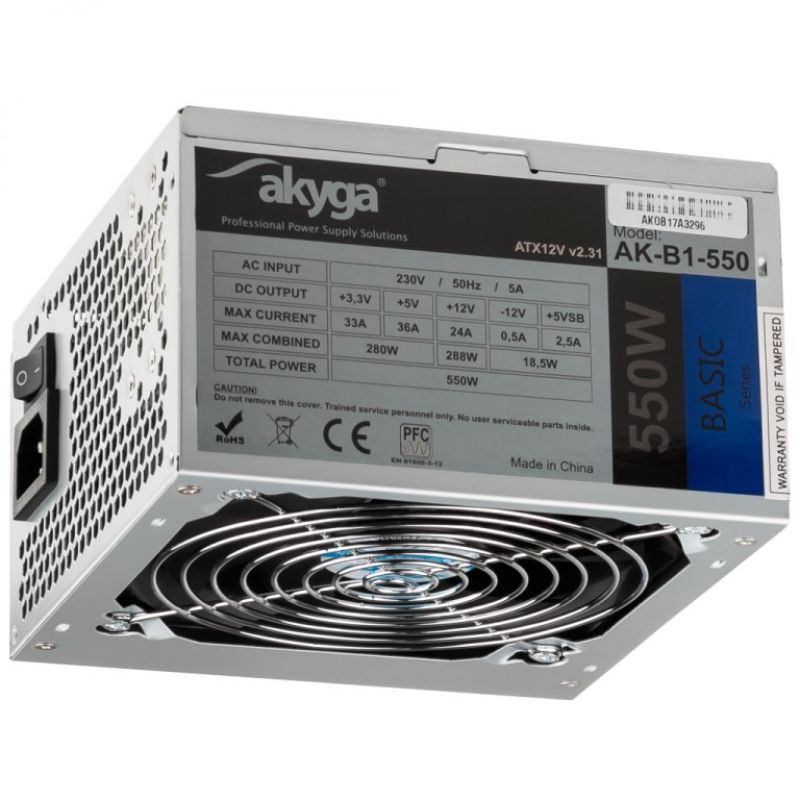

Akyga Basic AK-B1-550 Power Supply (550 W; Passive; 120 mm)

Apraksts

Technical details Environmental (sustainability) certification: RoHS Design Fan Location: Top Cooling type: Active Product color: Gray Fan bowl diameter: 12 cm Built-in switch: Yes Number of fans: 1 fan Power Total power (+5V): 280 W Power protection features Overload protection Short circuit Overheating protection Protection against overvoltage Overcurrent Total power (+3.3V): 280 W Total power (+5 Vsb): 18.5 W Maximum output current (+3.3V): 33 A Total power (-12V): 18.5 W Efficiency: 70% Maximum output current (+5V): 36A Maximum output current (+12V): 24A Peak power: 550 W Input current: 5 A AC input voltage: 230 V Total power: 550 W Maximum output current (-12V): 0.5A Maximum output current (+5 Vsb): 2.5 A Total power (+12V): 288 W Weight and dimensions Product depth: 140 mm Product height: 85 mm Product weight: 1.04 kg Product width: 150 mm Working conditions Temperature range (operation): 5 - 50 °C Efficiency Intended use: PC MTBF (Mean Time Between Failures): 100000 h ATX version: 2.31 Supported motherboard type: ATX Power supply type (PSU): ATX Packaging data Weight with packaging: 1.12 kg User Manual: Yes Packaging type: Box Package width: 160 mm Package height: 95 mm Packaging depth: 220 mm Ports and interfaces Peripheral (Molex) Power Connectors (4-pin): 2 Peripheral (Molex) Power Cable Length: 300 Motherboard power connector: 20+4 pin ATX PCI Express Power (6-pin): 1 SATA power cable length: 300 Wiring Type: Non-Modular CPU power cable length: 45 cm P4 CPU connector (4-pin): 1 Number of SATA power connectors: 3 Other functions Warranty card: Yes Safety warning Warnings Avoid contact of the product with water or other liquids. The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations. Do not open the housing – risk of electric shock.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.27

Product Type

Power supplies
