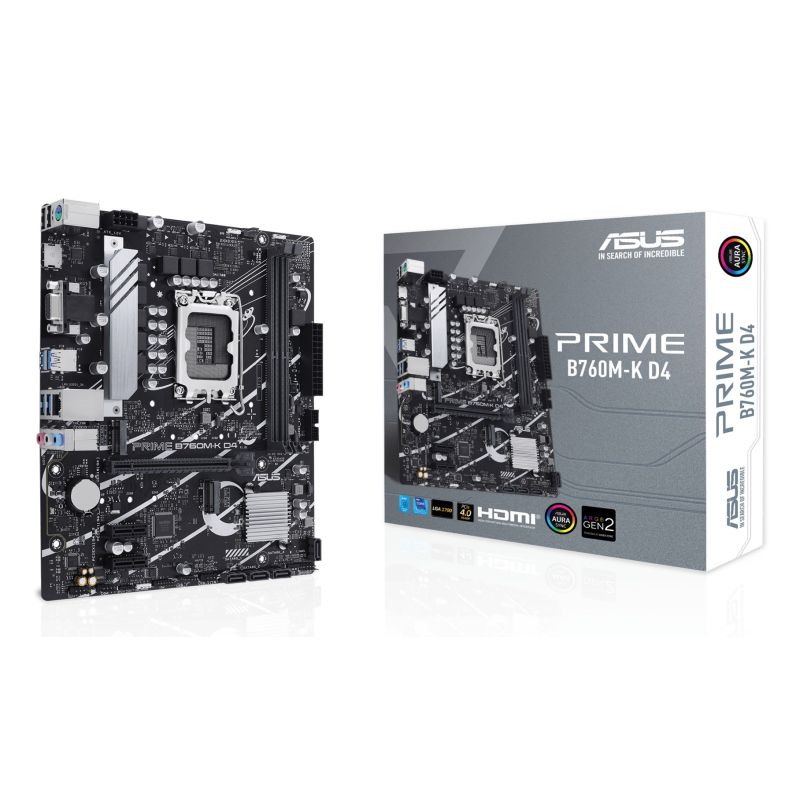

ASUS PRIME B760M-K D4 motherboard

Apraksts

Processor Supported CPU sockets: LGA 1700 Processor manufacturer: Intel Processor socket: LGA 1700 Processor Intel® Core™ i5 Intel® Celeron® Intel® Core™ i3 Intel® Pentium® Gold Intel® Core™ i9 Intel® Core™ i7 Graphics Parallel Processing Support: Not Supported Memory Supported memory clock speeds 2933 MHz 4800 MHz 3000 MHz 2800 MHz 3333 MHz 4400 MHz 3200 MHz 2666 MHz 2133 MHz 5000 MHz 4266 MHz 5066 MHz 3600 MHz 2400 MHz 4000 MHz 5333 MHz 3400 MHz 4600 MHz 3733 MHz 3466 MHz Unbuffered memory: Yes Maximum memory capacity: 64 GB Memory Channel Support: Dual Channel Memory slot type: DIMM Supported memory types: DDR4-SDRAM Number of memory slots: 2 Supported memory clock speed (max): 5333 MHz ECC Compatibility: Non-ECC Characteristics Chipset Board Family: Intel Motherboard format: Micro ATX Audio output channels: 7.1 ch. Motherboard Layout: Intel B760 Supported Windows operating systems Windows 11 Windows 10 x64 Weight and dimensions Product width: 244 mm Product depth: 211 mm Product height: 36 mm Internal I/O Number of SATA III connectors: 4 Number of USB 2.0 ports: 2 S/PDIF socket: Yes USB 3.2 Gen 1 (3.1 Gen 1) ports: 1 ATX power socket (24-pin): Yes Number of case fan connectors: 1 TPM Connector: Yes CPU fan connector: Yes Front panel audio connector: Yes Number of COM sockets: 1 EPS power supply connector (8-pin): Yes RGB LED: Yes 12V power connector: Yes Network Wake-On-LAN: Yes Wi-Fi: No Ethernet interface type: 2.5 Gigabit Ethernet Wired LAN: Yes BIOS BIOS Type: UEFI AMI Packaging data Package height: 263 mm Weight with packaging: 926.3 g Package width: 270 mm Package depth: 51.5 mm Package contents Cables: SATA Memory drivers Supported drive types: HDD & SSD Supported hard drive interfaces: M.2, SATA III RAID Service: Yes RAID levels 0 1 10 5 Number of supported HDDs: 4 Number of supported storage drive sizes: 6 Rear Panel I/O Ports Supported USB type: USB Type-A Number of PS/2 ports: 1 Number of USB 2.0 ports: 2 Number of HDMI ports: 1 Number of Ethernet LAN ports (RJ-45): 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of VGA (D-Sub) ports: 1 Microphone: Yes Expansion slots Number of M.2 (M) slots: 2 PCI Express x1 (Gen 4.x) slots: 2 PCI Express x16 (Gen 4.x) slots: 1 Other functions Product weight: 528 g Safety warning Warnings Avoid direct contact with electronics to prevent electrostatic damage. Do not throw the motherboard into the regular trash; the product requires special disposal. Before starting any maintenance or assembly, disconnect the product from the power source.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Motherboards
