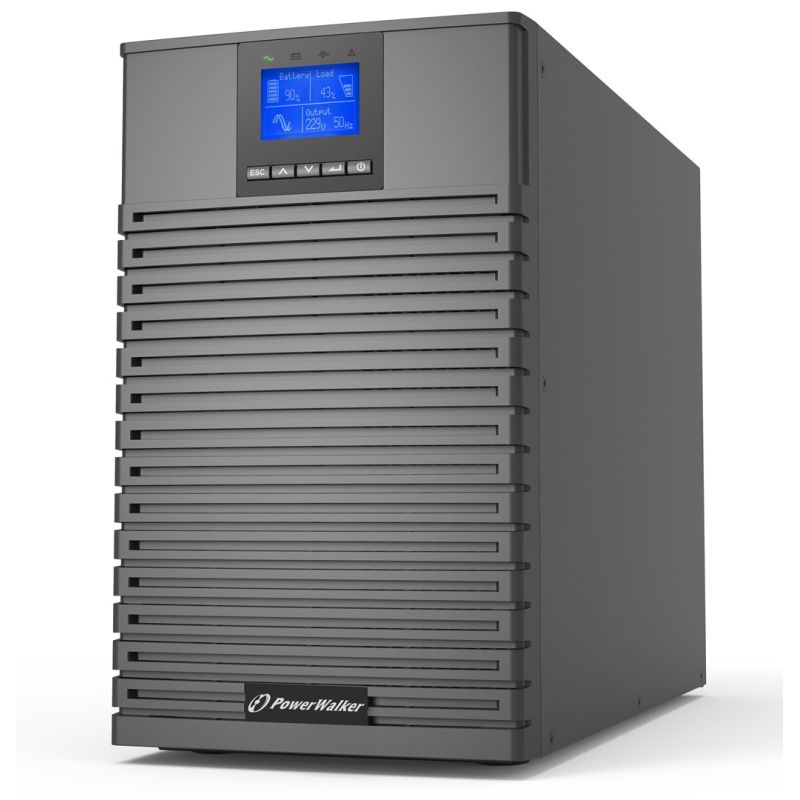

POWER WALKER UPS ON-LINE VFI 3000 ICT IOT PF1 1/1 PHASE, 3000VA, USB/RS232, 8X IEC C13 + 1X C19, C120EPO

Apraksts

Characteristics Input operating voltage (maximum): 300 V Input power factor: 0.99 Maximum configurable power: 3 kVA UPS Topology: Double Conversion (Online) ECO mode: Yes Actual power: 3000 W Output current THD level: 1% Output operating voltage (minimum): 240 V Waveform: Pure sine Power Protection Features: Overcharge Input current THD level: 5% Noise level: 50 dB Response time (typical): 0 ms Output operating voltage (maximum): 200 V Output voltage regulation: 1% Emergency Power Off: Yes Input operating voltage (minimum): 160 V Crest Factor: 3:1 Input frequency: 40/70 Hz Output power factor: 1 Design Layout: Tower Display type: LCD Cooling type: Active LEDs: Yes Built-in fan: Yes Product color: Black Weight and dimensions Product height: 318 mm Product depth: 428 mm Product weight: 26.4 kg Product width: 192 mm Working conditions Relative humidity range: 0 - 95% Temperature range (operation): 0 - 45 °C Packaging data Package width: 590 mm Package height: 475 mm Package contents User Manual: Yes Cables: Power input cable, Power output cable, USB cable Ports and interfaces Emergency Power Off (EPO) Connector: Yes Plug: C20 panel Serial interface: Yes AC Output Types C13 panel C19 panel Number of network sockets: 9 x network socket USB port: Yes SCSI interface: RS-232 Serial communication ports: 1 Battery Battery capacity: 9 Ah Charging time: 3 hours Battery voltage: 12 V Number of batteries supported: 6 Charging current: 1.5 A Logistics data Harmonized System (HS) code: 85078000 Safety warning Warnings Keep away from sources of fire and water. Do not disassemble the device housing, as this may result in electric shock. The device should be used in well-ventilated areas to avoid overheating.

Category

Computers and accessories

Department

Electronics

Weight (kg)

28.4
