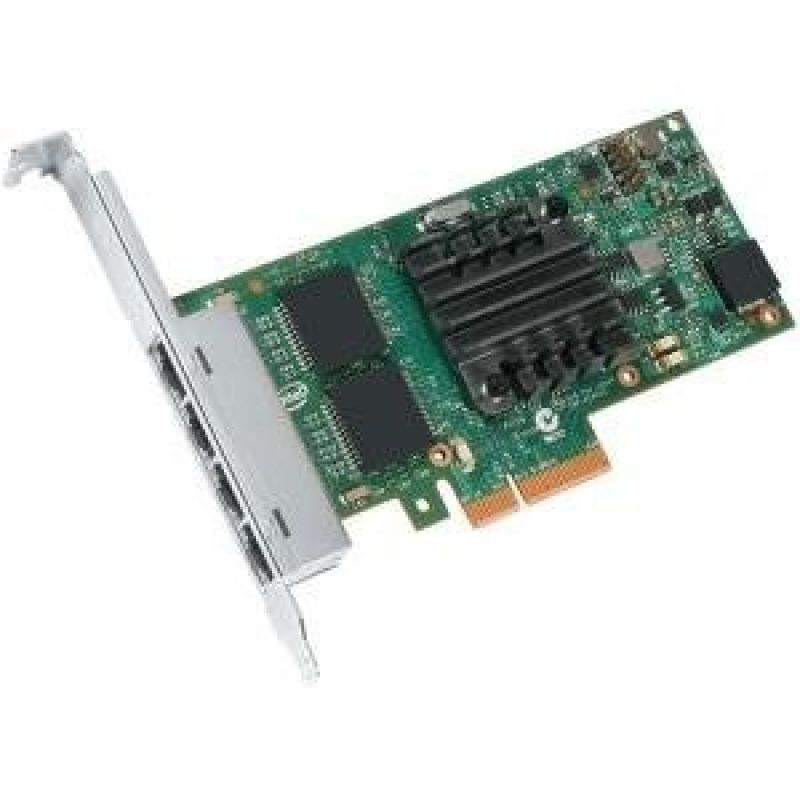

Intel I350T4V2BLK 936716 network adapter (PCI-E; 4x 10/100/1000Mbps)

Apraksts

Design Intended use: Server Internal: Yes Chipset: Intel® I350 Power Power consumption: 5 W Weight and dimensions Product width: 68.9 mm Product depth: 135.4 mm Operating conditions Temperature range (storage): -40 - 70 °C Permissible relative humidity: 35 - 90% Temperature range (operation): 0 - 55 °C Network Supported network protocols: TCP, UDP, IP Wired LAN: Yes Ethernet LAN data transfer rate 100 Mbit/s 1000 Mbit/s 10 Mbit/s LAN controller: Intel® I350 Maximum data transfer rate: 1000 Mbit/s Cabling technology: 10/100/1000BaseT(X) Communication standards IEEE 802.3u IEEE 802.3x IEEE 802.3az IEEE 802.1as IEEE 802.3z IEEE 802.3ab IEEE 802.3 IEEE 802.1Q Maximum operating range: 100 m Full duplex: Yes Ports and interfaces Number of Ethernet LAN ports (RJ-45): 4 Connectivity: Wired Interface: Ethernet Host interface: PCI Express PCI version: 2.1 PCI card size: Full height (low-profile) Other features Processor type: Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) Embedded options available: No Thermal Design Power (TDP): 5 W Product type: Network Interface Card Interface type: PCIe v2.1 (5.0 GT/s) Status: Launched Cable type: Cat 5 up to 100m PCI-SIG* SR-IOV compliant: Yes Network adapter cable: Copper Bracket height: Low-Profile (LP) / Full-Height (FH) Market segment: Server Product family: Intel Gigabit server adapter Intel® Ethernet Power Management: Yes Intel® Virtual Machine Device Queues (VMDq): Yes Launch date: Q3'14 Last change: 63903513 iWARP/RDMA: No On-chip QoS and Traffic Management: Yes Slot speed and width: 5.0 GT/s, x4 Lane Intel® Virtualization Technology for Connectivity (VT-c): Yes Ethernet adapter ARK ID: 84805 Storage Over Ethernet: Yes Network card type: Server Controller type: Intel I350 Intel® Flexible Port Partitioning: Yes Product series: Intel® I350 Product code name: Powerville Low-halogen options available: No Storage Over Ethernet: iSCSI, NFS Intelligent offload system: Yes Cabling type: Cat 5 up to 100m Manual URL: http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 Automated Tracking System for Classification of Goods (CCATS): NA Export Control Classification Number (ECCN): 5A991 Logistics data Harmonized System (HS) code: 85176990 Safety warning Warnings The product contains electronic components and should not be disposed of with regular household waste. Avoid contact with liquids. If exposed to liquids, the product may be damaged. Local regulations regarding the disposal of electronic waste must be followed.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1
