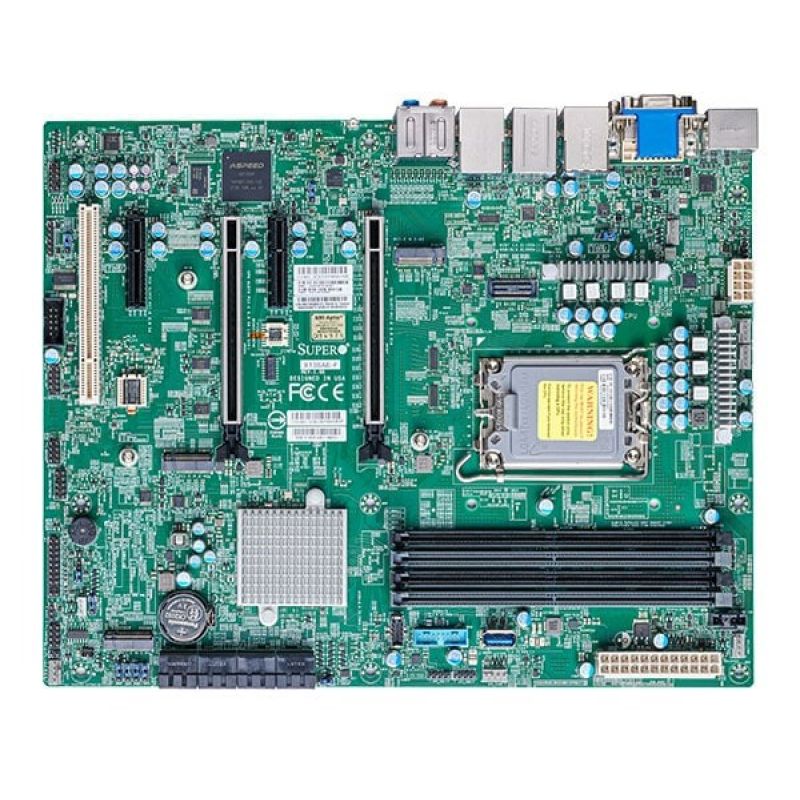

Supermicro MBD-X13SAE-F-B Server Motherboard

Apraksts

Processor Processor Intel® Core™ i7 Intel® Core™ i5 Intel® Core™ i9 Intel® Core™ i3 Processor socket: LGA 1700 Processor cores: 24 Processor manufacturer: Intel Memory Supported memory types: DDR5-SDRAM Unbuffered memory: Yes Maximum memory capacity: 192 GB Supported memory module capacities 16GB 8GB 32GB 24GB 48GB Supported memory clock speeds 4400 MHz 3600 MHz 4000 MHz Memory voltage: 1.1 V Number of memory slots: 4 ECC compatibility: ECC or Non-ECC Memory slot type: DIMM Features Motherboard chipset: Intel W680 Motherboard chipset family: Intel Purpose: Server Motherboard form factor: ATX Audio chipset: Realtek ALC888S Weight and dimensions Product depth: 243,8 mm Product width: 304,8 mm Operating conditions Operating temperature range: 0 - 50 °C Storage temperature range: -20 - 60 °C Internal I/O Serial port connector: 1 TPM connector: Yes Network LAN controller: Intel® I219-LM Ethernet interface type: 2.5 Gigabit Ethernet Wired LAN: Yes BIOS ACPI version: 6.0 BIOS memory size: 32 Mbit BIOS type: AMI BIOS system version (SMBIOS): 3.0 Storage controllers RAID levels 1 5 0 10 Supported hard drive interfaces: M.2, PCI Express 3.0, PCI Express 5.0 RAID support: Yes Rear panel I/O ports Number of HDMI ports: 1 Number of USB 3.2 Gen 2x2 Type-C ports: 2 HDMI version: 2.0b Number of Ethernet LAN ports (RJ-45): 3 DisplayPort version: 1.4a Number of DVI-D ports: 1 Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3 Number of USB 2.0 ports: 4 Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3 Number of VGA ports (D-Sub): 1 Number of DisplayPort ports: 1

Category

Computers and accessories

Department

Electronics

Weight (kg)

1
