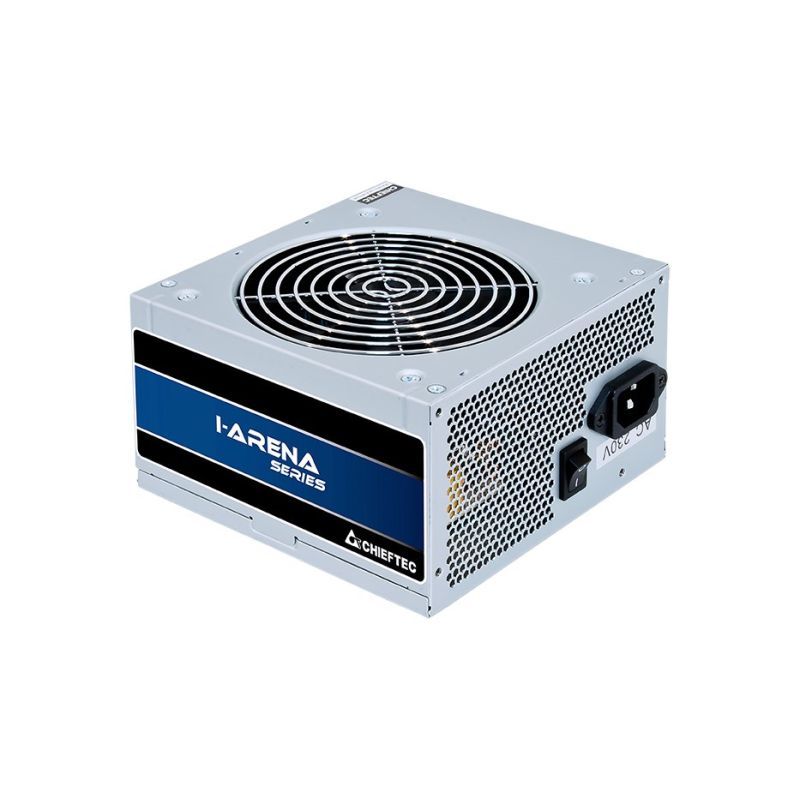

Chieftec iARENA GPB-350S power supply (350 W; active; 120 mm)

Apraksts

Design Number of fans: 1 fan Cooling type: Active Fan diameter: 12 cm Built-in power switch: Yes Product colour: Silver Fan location: Top Power Total power: 350 W AC input voltage: 200 - 240 V Power factor: 0.9 Power protection features Under-voltage protection Short circuit protection Overload protection Over-voltage protection Input current: 3 A AC input frequency: 47 - 63 Hz Maximum output current (-12 V): 0.3 A Maximum output current (+12 V1): 26 A Efficiency: 85% Total power (+5 Vsb): 12.5 W Maximum output current (+3.3V): 16 A Maximum output current (+5 Vsb): 2.5 A Total power (+12 V): 312 W Maximum output current (+5 V): 15 A Total power (-12V): 3.6 W Total power (+5 V): 90 W PFC (Power Factor Correction) type – power factor correction: Active Total power (+3.3 V): 90 W Weight and dimensions Product height: 87 mm Product width: 140 mm Product depth: 150 mm Performance RoHS compliance: Yes Power supply unit (PSU) type: PS/2 Purpose: PC ATX version: 2.3 Packaging data Packaging type: Box Ports and interfaces Peripheral power connectors (Molex) (4-pin): 3 Motherboard power connector: 20+4-pin ATX Number of SATA power connectors: 5 PCI Express power connectors (6+2-pin): 1 Other features User manual: Yes Warranty card: Yes Safety warning Warnings Avoid contact between the product and water or other liquids. Do not open the casing – risk of electric shock. The product must not be disposed of with household waste – dispose of it in accordance with local regulations.

Category

Computers and accessories

Department

Electronics

Weight (kg)

1.17

Product Type

Power supplies
