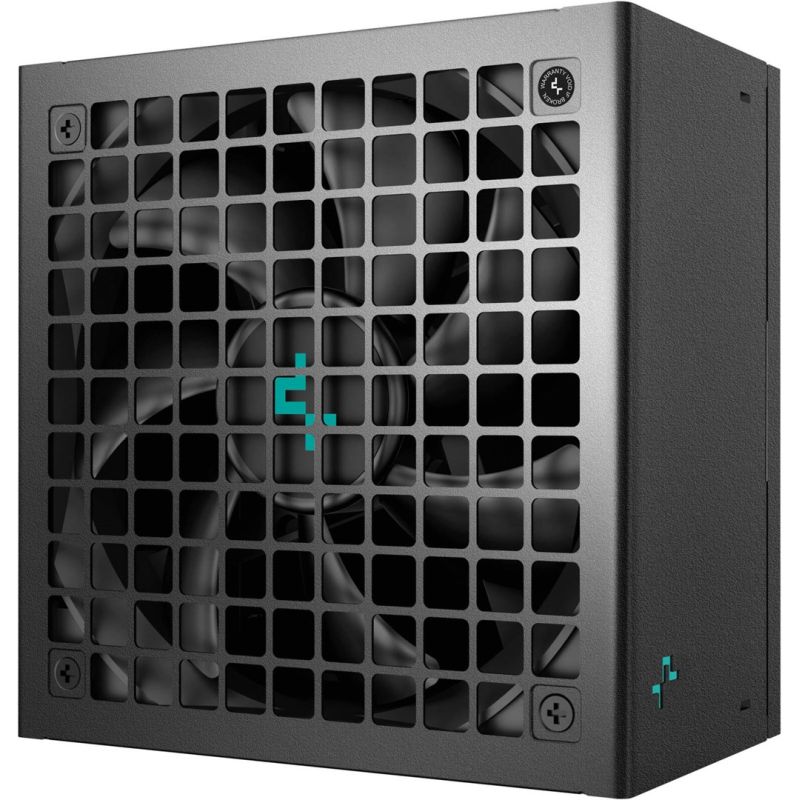

DeepCool PN1000-D Power Supply (R-PNA00D-FC0B-JGEU-V2)

Apraksts

Design Number of fans: 1 fan Built-in switch: Yes Product color: Black Cooling type: Active Fan bowl diameter: 12 cm Fan Location: Top Power Total power: 1000 W Efficiency: 90% Power protection features Overheating protection Overload protection No load operation Surge & inrush protection (SIP) Protection against overvoltage Overcurrent Low voltage protection Surge protection Total power (+3.3V): 120 W AC input frequency: 50/60 Hz AC input voltage: 100 - 240 V Total power (-12V): 3.6 W PFC (Power Factor Correction) Type: Active Total power (+5V): 120 W Maximum output current (+3.3V): 22 A Total power (+12V): 999.6 W Hold time: 16 ms Good Signal Power Delay Range: 100 - 150 ms Maximum output current (-12V): 0.3A Maximum output current (+12V): 83.3A Maximum output current (+5 Vsb): 3 A Maximum output current (+5V): 22A Weight and dimensions Product height: 85 mm Product depth: 150 mm Product width: 150 mm Working conditions Temperature range (operation): 0 - 40 °C Efficiency 80 PLUS Certificate: 80 PLUS Gold ATX version: 3.1 Bearing Technology: FDB Power supply type (PSU): ATX Intended use: PC MTBF (Mean Time Between Failures): 100000 h Packaging data Packaging type: Box Certificates Certificates of conformity RoHS WEEE Ports and interfaces Wiring type: Modular Motherboard power connector: 24-pin ATX Motherboard cable length: 54 cm

Category

Computers and accessories

Department

Electronics

Weight (kg)

2.76

Product Type

Power supplies
