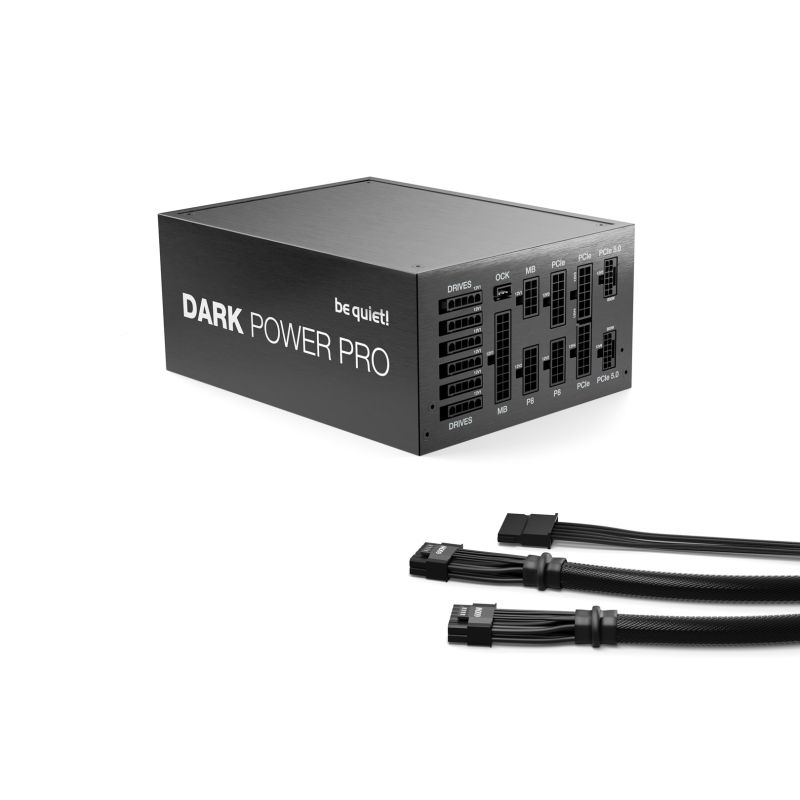

BE QUIET! DARK POWER PRO 13 1600W Power Supply

Apraksts

Technical details Environmental certificate (sustainability) ErP ENERGY STAR Triman Sustainability compliance: Yes Design Cooling type: Active Product colour: Black Number of fans: 1 fan Fan diameter: 13.5 cm Power AC input voltage: 115–240 V Power protection features Short circuit Overheating protection Overvoltage protection Overcurrent protection Overload protection Undervoltage protection Input current: 15–9 A AC input frequency: 50–60 Hz Maximum output current (+12 V2): 40 A Total power (+3.3 V): 150 W Power factor: 0.99 Hold time: 18 ms Maximum output current (+12 V1): 40 A Total power (+5 V): 150 W Maximum output current (+3.3V): 25 A Total power (-12V): 6 W Efficiency: 94.5% Total power: 1600 W Maximum output current (+5 V): 25 A Total power (+5 Vsb): 17.5 W Peak power: 1700 W Maximum output current (-12 V): 0.5 A Maximum output current (+12 V4): 45 A Maximum output current (+5 Vsb): 3.5 A Maximum output current (+12 V3): 45 A Total power (+12 V): 1600 W Weight and dimensions Product weight: 2.44 kg Product width: 150 mm Product depth: 200 mm Product height: 86 mm Performance 80 PLUS certification: 80 PLUS Titanium Noise level: 31.1 dB MTBF (Mean Time Between Failures): 100000 h ATX version: 3.1 Bearing technology: FDB Purpose: PC EPS version: 2.92 Power supply unit (PSU) type: ATX Packaging data Package depth: 417 mm Weight including packaging: 6.9 kg Package height: 152 mm Package width: 253 mm Packaging content Cables: Processor, PCIe, Peripheral (Molex), SATA Cable ties included: Yes Certificates Compliance certificates UKCA Federal Communications Commission (FCC) WEEE CCC RoHS CE Ports and interfaces EPS power connector (8-pin): Yes Peripheral (Molex) power cable length 600 900 mm 750 1050 mm PCI Express power connectors (6+2 pin): 6 EPS power connector (4+4 pin): Yes Number of PATA power connectors: 5 PCI Express socket: Yes ATX power connector (20+4 pin): Yes Motherboard cable length: 60 cm CPU power cable length: 70 cm PCI Express power cable length: 60 cm Cabling type: Fully modular SATA power cable length 950 mm 1050 mm 900 mm 600 500 mm 800 mm 750 mm Motherboard power connector: 20+4 pin ATX Number of SATA power connectors: 16 Logistics data Products per shipping case (inner): 2 pcs Shipping carton length: 44 cm Shipping carton width: 32.5 cm Shipping carton net weight: 14.6 kg Shipping carton height: 28.3 cm Warranty period: 10 year(s) Safety warning Warnings Avoid contact between the product and water or other liquids. The product is not suitable for disposal with household waste – dispose of it in accordance with local regulations. Do not open the housing – risk of electric shock.

Category

Computers and accessories

Department

Electronics

Weight (kg)

6.55

Product Type

Power supplies
