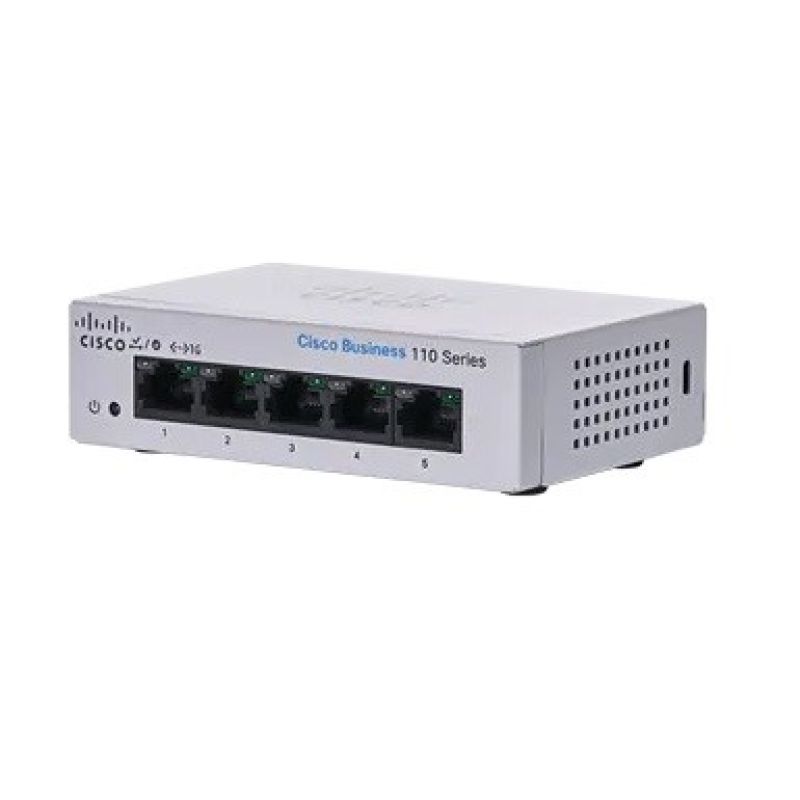

Cisco CBS110-5T-D-EU Switch

Apraksts

Design Rack mounting: Yes LED indicators: Yes Product colour: Grey Form factor: 1U Power Redundant power supply (RPS) support: No Number of power supply units: 1 DC input voltage: 12 V Power supply included: Yes Weight and dimensions Product weight: 230 g Product height: 30 mm Product width: 110 mm Product depth: 75 mm Security Queue scheduling algorithms: Weighted Round Robin (WRR) Management features Quality of Service (QoS) support: Yes Switch type: Unmanaged Switching layer: L2 Operating conditions Heat dissipation: 9.34 BTU/h Operating temperature range: 0 - 40 °C Permissible relative humidity: 5 - 90% Storage temperature range: -20 - 70 °C Relative humidity range: 10 - 90% Network Flow control support: Yes 10G support: No Full duplex: Yes Communication standards IEEE 802.1p IEEE 802.3u IEEE 802.3az IEEE 802.3x IEEE 802.3 IEEE 802.3ab Ethernet LAN data transfer rates: 10,100,1000 Mbit/s Copper Ethernet cabling technology 10BASE-T 100BASE-TX 1000BASE-T Half duplex: Yes Head-of-line (HOL) blocking: Yes Automatic MDI/MDI-X: Yes Performance MTBF (Mean Time Between Failures): 4243002 h Packaging data Quick start guide: Yes Ports and interfaces RJ-45 Ethernet ports for basic switching: 5 Number of Gigabit Ethernet ports: 5 RJ-45 Ethernet port type for basic switching: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transmission Address table size: 2048 entries Jumbo Frames extension: 9216 Number of queues: 4 Jumbo Frames support: Yes Forwarding rate: 7.4 Mpps Routing/switching capacity: 10 Gbit/s Power over Ethernet (PoE) PoE support: No Safety warning Warnings Do not open the enclosure or attempt to repair the device yourself. This product must not be disposed of with ordinary household waste. Take used electronic equipment to a disposal facility in accordance with local regulations. Ensure that the device is properly ventilated during operation.

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Network switches
