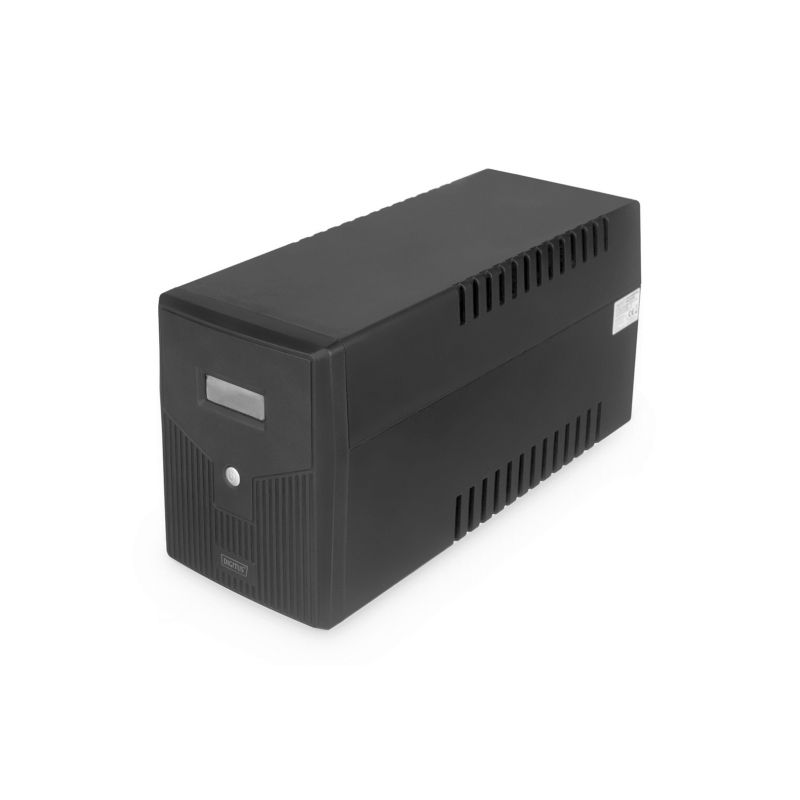

UPS Line-Ineractive LCD, 1500VA/900W2x12V/9Ah, AVR, 4xSCHUKO, USB, RS232, RJ45

Apraksts

Characteristics Power protection features Overload Battery discharge protection Overcharge protection Input operating voltage (minimum): 162 V Power factor: 0.6 Input operating voltage (maximum): 290 V Input frequency: 50 Hz Actual power: 900 W Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm Surge protection features Network Digital Subscriber Line (DSL) Modem Overvoltage protection: Yes UPS topology: Line-interactive technology Noise level: 40 dB Waveform: Pseudo sine Number of output phases: 1 Output frequency: 50 Hz Auto-restart: Yes Audible alarm: Yes Maximum configurable power: 1.5 kVA Output voltage regulation: 10% Transfer Time (Line Mode to Battery Mode): 2 ms Number of input phases: 1 Automatic Voltage Regulation (AVR): Yes Design LEDs: Yes Product color: Black Layout: Tower Display type: LCD Weight and dimensions Product weight: 10.1 kg Product depth: 380 mm Product height: 198 mm Product width: 158 mm Working conditions Relative humidity range: 0 - 95% Temperature range (operation): 0 - 40 °C Packaging data Package height: 280 mm Package width: 212 mm Packaging capacity: 26237.1 cm³ Ports and interfaces Number of Ethernet LAN ports (RJ-45): 2 Number of network sockets: 4 x network socket USB port: Yes Number of USB 2.0 ports: 1 Plug: Type F AC Output Types: Type E/F USB port type: USB Type B RS-232 port: 1 Serial communication ports: 1 Serial interface: Yes SCSI interface: RS-232 Battery Number of batteries supported: 2 Battery voltage: 12 V Battery capacity: 9 Ah Cold start: Yes Battery charging time (90%): 6 h Other functions Nominal output voltage: 230 V Nominal input voltage: 230 V Logistics data Harmonized System (HS) code: 85078000 Mask with serial number: 85044085 Safety warning Warnings The device should be used in well-ventilated areas to avoid overheating. Do not disassemble the device housing, as this may result in electric shock. Keep away from sources of fire and water.

Category

Computers and accessories

Department

Electronics

Weight (kg)

11.6
