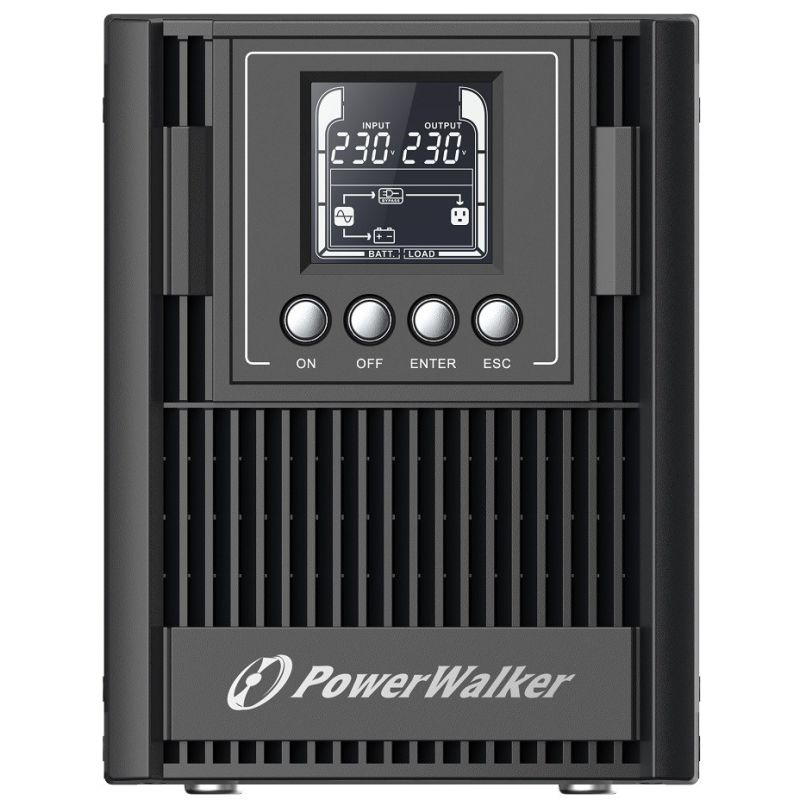

POWER WALKER UPS ON-LINE VFI 1000 AT FR 3X FR OUT, USB/RS-232, LCD, EPO

Apraksts

Characteristics Output operating voltage (maximum): 208 V Input operating voltage (minimum): 80 V Waveform: Pure sine Output frequency adjustment: ±0.5 Hz Output current THD level: 5% Output operating voltage (minimum): 240 V Input frequency: 40/70 Hz Crest Factor: 3:1 Efficiency: 88% Actual power: 900 W Output power factor: 0.9 Input operating voltage (maximum): 300 V Input power factor: 0.99 UPS Topology: Double Conversion (Online) Output voltage regulation: ±1% Maximum configurable power: 1 kVA Response time (typical): 0 ms Design Product color: Black Display type: LCD Layout: Tower Built-in fan: Yes Weight and dimensions Product depth: 327 mm Product height: 191 mm Product width: 140 mm Product weight: 9.11 kg Working conditions Relative humidity range: 20 - 90% Temperature range (operation): 0 - 40 °C Packaging data Package height: 274 mm Package width: 218 mm Weight with packaging: 9.95 kg Package depth: 432 mm Package contents Cables: RS-232, USB cable Ports and interfaces AC Output Types: Type E Number of USB 2.0 ports: 1 RS-232 port: 1 USB port: Yes USB port type: USB Type B Plug: C14 panel Number of network sockets: 3 x network socket Battery Number of batteries supported: 2 Charging time: 4 hours Battery capacity: 9 Ah Typical backup time at full load: 3.5 min Battery voltage: 12 V Typical backup time at half load: 11 min Logistics data Harmonized System (HS) code: 85078000 Safety warning Warnings Keep away from sources of fire and water. The device should be used in well-ventilated areas to avoid overheating. Do not disassemble the device housing, as this may result in electric shock.

Category

Computers and accessories

Department

Electronics

Weight (kg)

10.1
