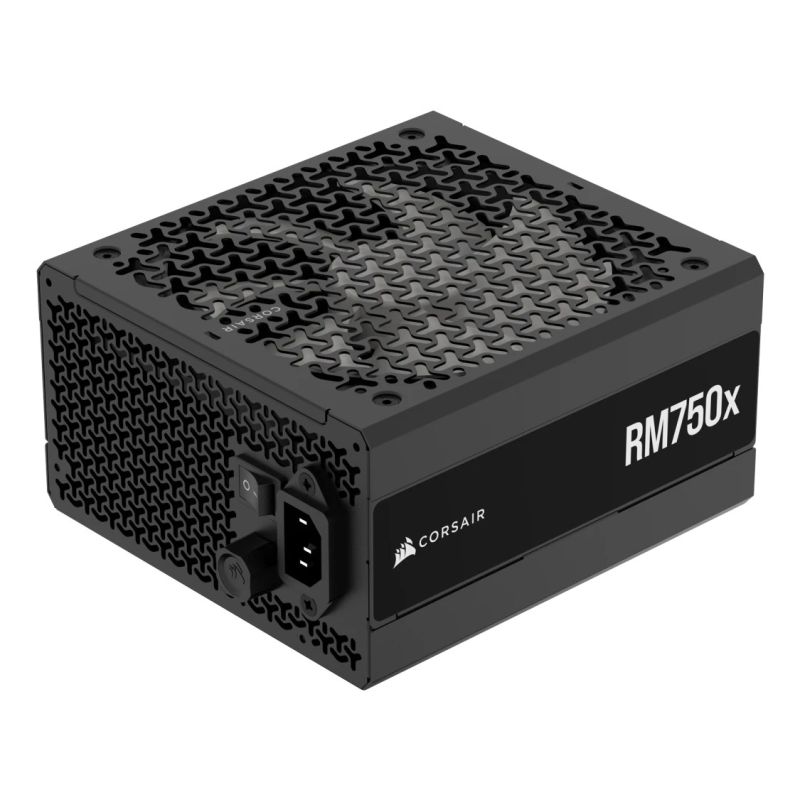

CORSAIR RMX Series RM750X ATX 3.1 F.Modular Gold

Apraksts

Technical details Warranty period: 10 years Certificates of conformity: RoHS Design Built-in switch: Yes Cooling type: Active Product color: Black Fan bowl diameter: 14 cm Number of fans: 1 fan Power Total power: 750 W Input current: 10 - 5 A AC input voltage: 100 - 240 V Maximum output current (+3.3V): 20 A Total power (-12V): 9.6 W Maximum output current (+12V): 62.5A AC input frequency: 47 - 63 Hz Total power (+5V): 150 W Maximum input current (@ 220V): 5 A Maximum output current (-12V): 0.8A Maximum output current (+5V): 20A Total power (+3.3V): 150 W Maximum input current (@ 110V): 10 A Total power (+5 Vsb): 15 W Total power (+12V): 750 W Maximum output current (+5 Vsb): 3 A Weight and dimensions Product depth: 160 mm Product height: 86 mm Product weight: 3.19 kg Product width: 150 mm Efficiency Bearing Technology: Rifle Bearing ATX version: 3.1 80 PLUS Certificate: 80 PLUS Gold EPS version: 2.92 Intended use: PC MTBF (Mean Time Between Failures): 100000 h Power supply type (PSU): ATX Packaging data Packaging type: Box Ports and interfaces EPS power supply connector (8-pin): Yes Floppy drive connector: 1 Number of SATA power connectors: 8 Wiring Type: Fully Modular Motherboard power connector: 24-pin ATX Peripheral (Molex) Power Connectors (4-pin): 7 PCI Express slot: Yes Safety warning Warnings Do not open the housing – risk of electric shock. Avoid contact of the product with water or other liquids. The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.

Colour

Golden

Category

Computers and accessories

Department

Electronics

Weight (kg)

3.37

Product Type

Power supplies
