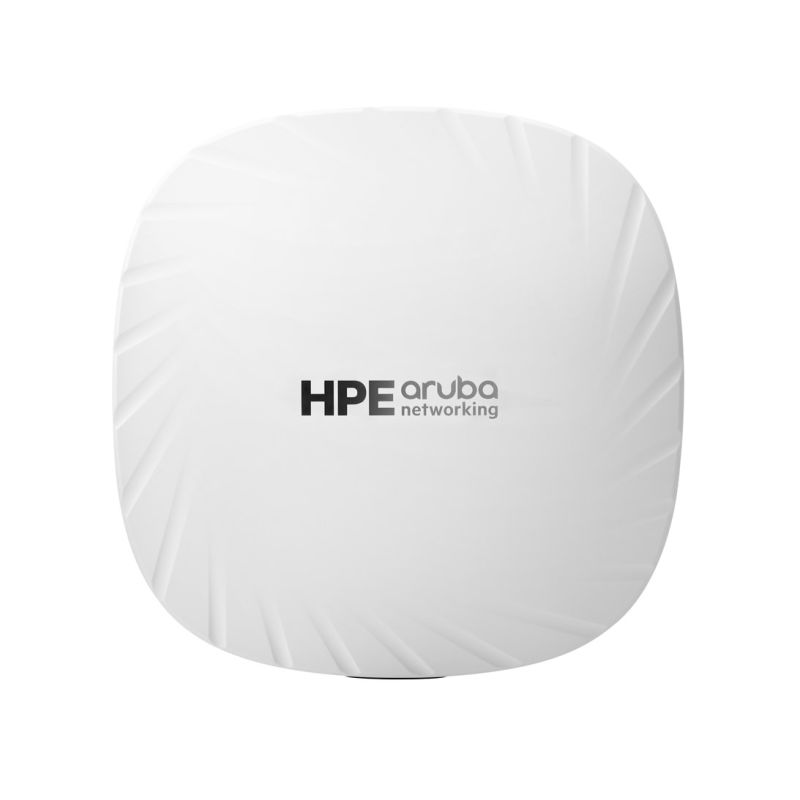

Aruba AP-505 (RW) 1774 Mbit/s White PoE Support

Apraksts

Characteristics Modulation 64-QAM 16-QAM 256-QAM BPSK QPSK 1024-QAM CCK Frequency band: 20/40 (2.4 GHz), 20/40/80 (5 GHz), maximum peak data rate 1.49 Gbps Maximum data transfer rate (5 GHz): 1200 Mbit/s Image expansion method OFDMA OFDM DSSS Auto MDI/MDI-X: Yes Data transfer speed via Ethernet LAN: 1000 Mbit/s Maximum data transfer rate (2.4 GHz): 574 Mbit/s 5GHz: Yes MIMO Type: Multi User MIMO Communication standards IEEE 802.11ax IEEE 802.11mc ALTHOUGH: Yes Maximum data transfer rate: 1774 Mbit/s 2.4GHz: Yes Design Intended use: Ceiling, Wall Cable lock slot type: Kensington Product color: White Application: Indoor Kensington Lock: Yes Power PoE Support: Yes Power consumption (max): 16.5 W Weight and dimensions Product height: 37 mm Product width: 160 mm Product weight: 500 g Product depth: 161 mm Security Encryption/Security WPA WPA3 WPA2 Working conditions Temperature range (storage): -40 - 70 °C Relative humidity range: 5 - 93% Permissible relative humidity: 5 - 93% Temperature range (operation): 0 - 50 °C Certificates Certificates of conformity Low Voltage Directive (LVD) Federal Communications Commission (FCC) ISED CE Electromagnetic compatibility (EMC) Ports and interfaces Number of USB 2.0 ports: 1 Supported USB type: USB Type-A Number of Ethernet LAN ports (RJ-45): 1 Antenna Antenna Features: Integrated Antenna Number of antennas: 2 Antenna Direction Type: Omnidirectional Antenna Antenna type: Internal Other functions Weight (imperial): 0.499 kg (1.1 lbs) Logistics data Harmonized System (HS) code: 85176990 Safety warning Warnings Electronic products should be recycled at specialized electronic waste collection points. Do not expose to moisture for long periods. Avoid direct contact with water.

Colour

White

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Routers and access points
