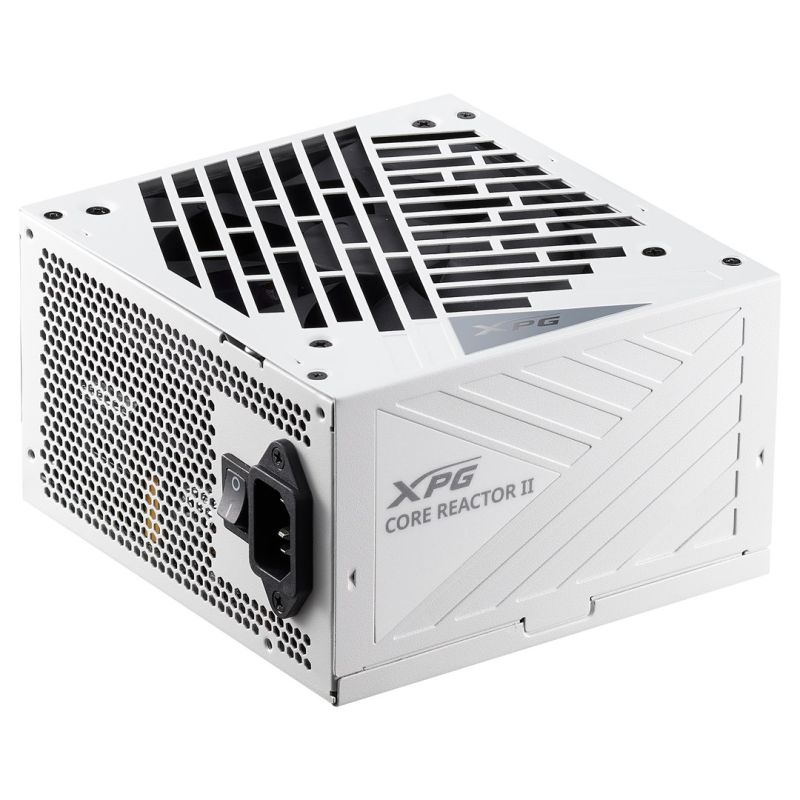

XPG COREREACTOR II 850W White 80+ Gold Power Supply

Apraksts

Design Fan diameter: 12 cm Cooling type: Active Product colour: White Number of fans: 1 fan Power Maximum output current (-12 V): 0.3 A Maximum output current (+5 V): 22 A Power factor: 0.99 Maximum output current (+12 V): 62.5 A Total power: 850 W Maximum output current (+3.3V): 22 A Maximum output current (+5 Vsb): 3 A AC input voltage: 100 - 240 V Input current: 12 A AC input frequency: 47 - 63 Hz Power protection features Overload protection Short-circuit protection Undervoltage protection Overvoltage protection Overcurrent protection Surge & inrush protection (SIP) Weight and dimensions Product width: 140 mm Product depth: 150 mm Product weight: 1.6 kg Product height: 86 mm Performance MTBF (Mean time between failures): 100000 h EPS version: 2.92 Power supply type (PSU): ATX Bearing technology: FDB ATX version: 3.0 80 PLUS certification: 80 PLUS Gold Purpose: PC Packaging data Weight including packaging: 3.1 kg Ports and interfaces ATX power connector (12+4 pin): Yes Cabling type: Fully modular Motherboard power connector: 20+4 pin ATX PCI Express power connectors (6+2 pin): 6 Number of SATA power connectors: 8 EPS power supply connector (8-pin): Yes ATX power connector (24-pin): Yes Peripheral power connectors (Molex) (4-pin): 4 Safety warning Warnings Do not open the housing – risk of electric shock. Avoid contact between the product and water or other liquids. The product must not be disposed of with household waste – dispose of it in accordance with local regulations.

Colour

Golden

Category

Computers and accessories

Department

Electronics

Weight (kg)

3.82

Product Type

Power supplies
