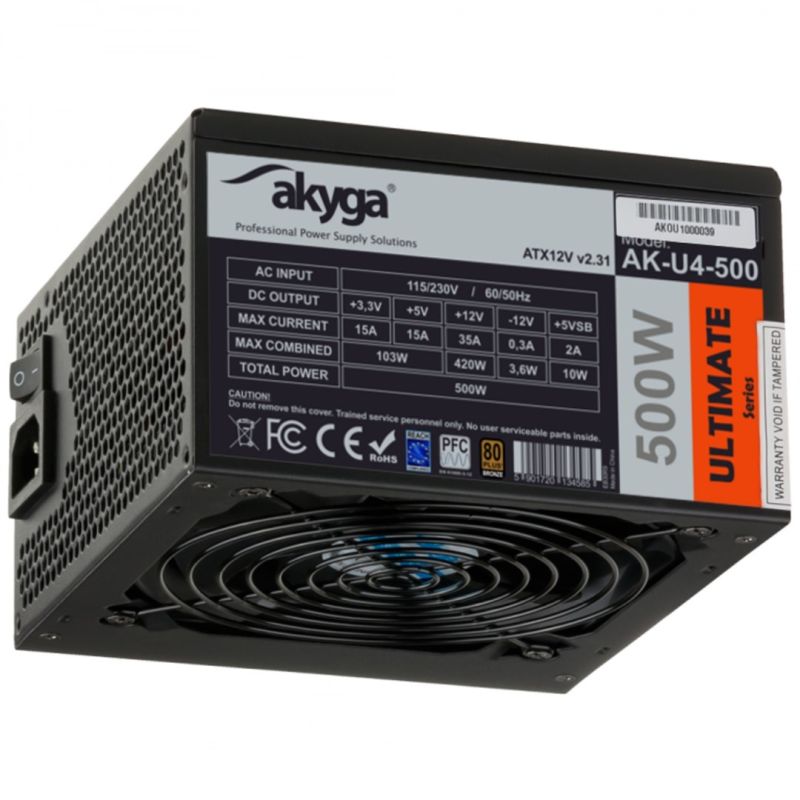

Akyga AK-U4-500 Power Supply Module 500 W 20+4 pin ATX ATX Black

Apraksts

Design Product color: Black Fan bowl diameter: 12 cm Number of fans: 1 fan Power Input current: 5 A Power protection features Low voltage protection Protection against overvoltage Short circuit AC input voltage: 230 V Total power (+5V): 103 W Total power (+3.3V): 103 W Maximum output current (+5V): 15A PFC (Power Factor Correction) Type: Active Total power: 500 W Efficiency: 80% Total power (+12V): 420 W Weight and dimensions Product weight: 1.26 kg Product height: 85 mm Product depth: 140 mm Product width: 150 mm Working conditions Temperature range (operation): 5 - 50 °C Efficiency MTBF (Mean Time Between Failures): 100000 h Intended use: PC 80 PLUS Certificate: 80 PLUS Bronze Power supply type (PSU): ATX ATX version: 2.31 Packaging data Packaging type: Box Package depth: 222 mm Package width: 155 mm Weight with packaging: 1.33 kg Package height: 95 mm Certificates Certificates of conformity: RoHS Ports and interfaces EPS power supply connector (8-pin): Yes Wiring Type: Non-Modular Peripheral (Molex) Power Connectors (4-pin): 2 Motherboard power connector: 20+4 pin ATX PCI Express Power (6-pin): 1 PCI Express power connectors (6+2 pin): 1 Number of SATA power connectors: 6

Colour

Black

Category

Computers and accessories

Department

Electronics

Weight (kg)

1

Product Type

Power supplies
