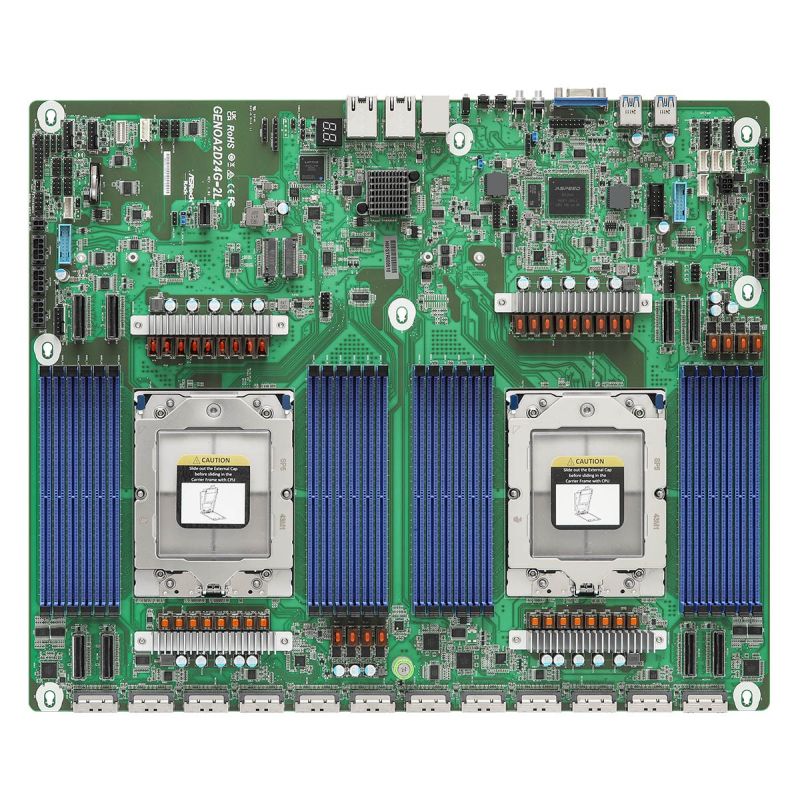

ASRock GENOA2D24G-2L+ Motherboard, 2x SP5 AMD Epyc 9004 SoC (24x DIMM, NVMe, 2x M.2, 2x GbE, IPMI)

Apraksts

Processor Processor manufacturer: AMD Maximum number of SMP processors: 2 Processor socket: Socket SP5 Processor: AMD EPYC Graphics Parallel processing support: Not supported On-board graphics card memory: 512 MB Built-in graphics card model: Aspeed AST2600 Memory Memory voltage: 1.1 V Memory slot type: DIMM Supported memory types: DDR5-SDRAM Number of memory slots: 24 Supported memory clock speeds: 4800 MHz Number of pins in the memory slot: 288 Maximum memory capacity: 12 TB Features Computer status monitoring Fan Voltage Temperature Product colour Green Grey Motherboard chipset family: AMD Motherboard chipset: AMD SoC Purpose: Server Weight and dimensions Product depth: 350 mm Product width: 430 mm Operating conditions Operating temperature range: -40 - 70 °C Relative humidity range: 20 - 90% Storage temperature range: 10 - 35 °C Internal I/O USB 3.2 Gen 1 (3.1 Gen 1) ports: 2 Number of COM ports: 1 Number of chassis fan connectors: 6 Chassis intrusion detection connector: Yes Front panel connector: Yes ATX power connector (24-pin): Yes Network Wi-Fi: No Ethernet interface type: Gigabit Ethernet Wired LAN: Yes LAN controller: Intel® I350 BIOS BIOS system version (SMBIOS): 3.5 BIOS type: UEFI AMI Clear CMOS button: Yes ACPI version: 6.4 Storage drives Number of supported HDDs: 32 Number of supported storage drive sizes: 34 Supported drive types: HDD & SSD Supported hard drive interfaces: SATA III Rear panel I/O ports Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4 Number of VGA (D-Sub) ports: 1 IPMI LAN port (RJ-45): Yes Number of Ethernet LAN ports (RJ-45): 2 Safety warning Warnings Do not open or disassemble the motherboard. Use only in a dry and well-ventilated place. The motherboard may contain electronic components that are hazardous to health – avoid direct contact.

Category

Computers and accessories

Department

Electronics

Weight (kg)

2.1

Product Type

SSD drives
