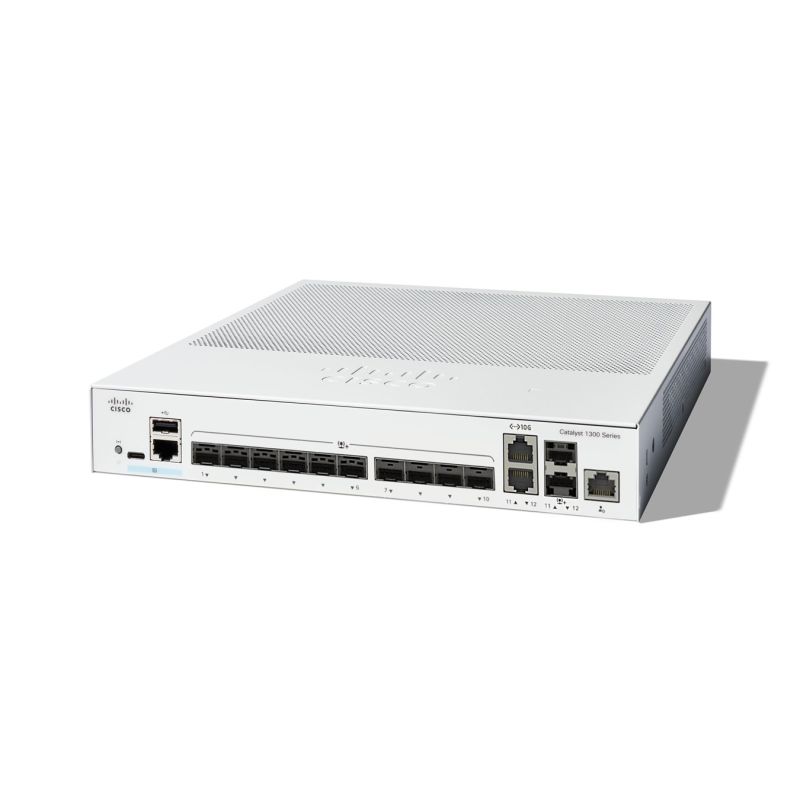

Catalyst 1300 12-Port SFP+ / 2 x 10GE Shared Network Switch

Apraksts

Design Product colour: Grey Rack mounting: Yes LED indicators: Yes Reset button: Yes Power AC input frequency: 50/60 Hz Power plug type: Type C AC input voltage: 100 - 220 V Power source: AC Weight and dimensions Product height: 44 mm Product weight: 2.67 kg Product width: 300 mm Product depth: 268 mm Security IGMP snooping: Yes DHCP functions DHCP snooping DHCP auto-config DHCP relay DHCP client DHCP server Encryption / security SNMPv2 SSH SNMP HTTPS SSH-2 SNMPv3 Queue scheduling algorithms: Weighted Round Robin (WRR) IGMP proxy: Yes SSH/SSL support: Yes Access control list (ACL): Yes Authentication type: RADIUS, TACACS+ Authentication: MAC-based authentication, web authentication Access Control List (ACL) rules: 1024 Management features Web-based management: Yes Switch type: Managed Local settings configuration (CLI): Yes Quality of Service (QoS) support: Yes MIB support: Y Switching layer: L2/L3 Operating conditions Permitted relative humidity: 10 - 90% Operating temperature range: -5 - 50 °C Relative humidity range: 10 - 90% Storage temperature range: -25 - 70 °C Network Communication standards IEEE 802.3ae IEEE 802.1D IEEE 802.1ab IEEE 802.3 IEEE 802.1Q IEEE 802.3z IEEE 802.1x IEEE 802.3ad IEEE 802.3u IEEE 802.1w IEEE 802.3af IEEE 802.3x IEEE 802.3ab IEEE 802.3an IEEE 802.3az IEEE 802.3at IEEE 802.1s Link aggregation: Yes VLAN support: Yes Policy-based routing: Yes Virtual LAN features Voice VLAN Private VLAN Traffic congestion control: Yes Port mirroring: Yes Rate limiting: Yes Spanning Tree Protocol: Yes Head-of-line blocking (HOL): Yes Performance Built-in processor: Yes Packaging data Package depth: 402.3 mm Package width: 355.9 mm Package height: 103.7 mm Weight including packaging: 3.55 kg Protocols IPv4 and IPv6 features IPv6 SNMP IPv6 SSH ICMPv6 IPv6 TFTP IPv6 Telnet GARP VLAN Registration Protocol (GVRP): Yes Ports and interfaces Number of SFP+ module slots: 10 Number of 10G Ethernet ports (copper): 2 Logistics data Country of origin: China Data transmission Packet buffer memory: 3 MB Routing/switching capacity: 240 Gbit/s Jumbo Frames extension: 9000 Address table size: 16000 entries Jumbo Frames support: Yes Static route: Yes Number of queues: 8 Multicast features Multicast support: Yes

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

2.15

Product Type

Network switches
