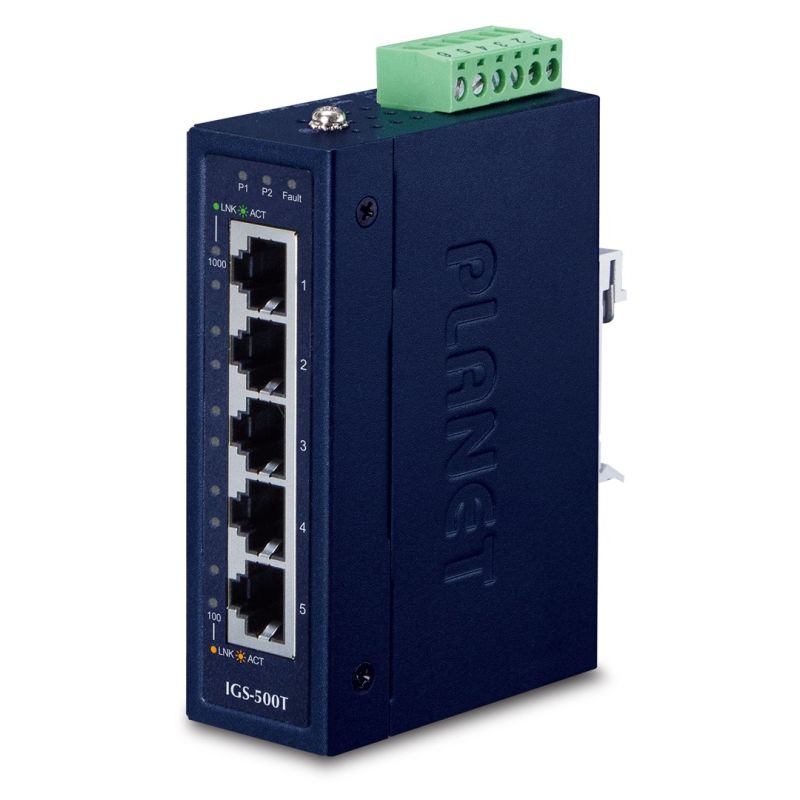

PLANET IGS-500T Network Links Unmanaged Gigabit Ethernet (10/100/1000) Blue

Apraksts

Design Housing material: Metal Wall mountable: Yes DIN rail mounting: Yes IP protection class: IP30 LEDs: Yes Product color: Blue Power Power consumption: 3.6 W DC input voltage: 24V Backup Power Supply (RPS) Support: Yes Weight and dimensions Product depth: 70 mm Product height: 104 mm Product width: 30 mm Product weight: 252 g Management features Switch Type: Unmanaged Working conditions Permissible relative humidity: 5 - 90% Relative humidity range: 5 - 90% Temperature range (operation): -40 - 75 °C Temperature range (storage): -40 - 75 °C Heat emission: 12.35 BTU/h Network Auto-Negotiation: Yes Flow Control Support: Yes MAC address auto-learning supported: Yes MAC address auto-aging supported: Yes 10G Support: No Auto MDI/MDI-X: Yes Full duplex: Yes Supported cable types Cat5 Cat6 Cat3 Cat5e Cat4 Communication standards IEEE 802.3u IEEE 802.3 IEEE 802.3ab IEEE 802.3az IEEE 802.1p IEEE 802.3x Ports and interfaces Basic RJ-45 Switching Number of Ethernet Ports: 5 Number of Gigabit Ethernet ports: 5 Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000) Logistics data Harmonized System (HS) code: 85176990 Data transfer Store-and-forward: Yes Jumbo Frames Expansion: 9000 Jumbo Frame Compatible: Yes Address table size: 4000 entries Routing/switching capacity: 10 Gbit/s Packet buffer memory: 1 MB Throughput: 7.4 Mpps Power over Ethernet (PoE) PoE Support: No

Colour

Blue

Category

Networking & Communication, Computers and accessories

Department

Electronics

Weight (kg)

3.59

Product Type

Network switches
